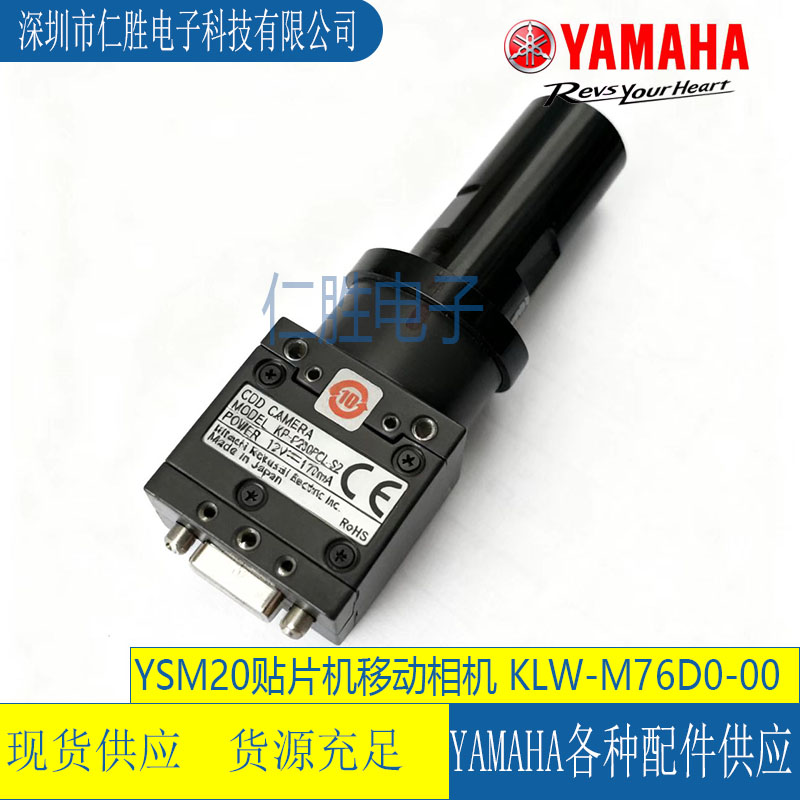

KLW-M76D0-00 雅马哈贴片机YSM20R移动相机

1 90K41-001320 LABEL,CAUTION 2
2 90563-04J100 SPACER 2
3 90990-41J123 COLLAR 3
4 KHT-M76B0-01 LENS FID. 1  YSM20R移动镜头
5 KLW-M7210-00 CCD CAMERA 1  YSM20R移动相机
6 KLW-M76D0-00 CAMERA ASSY. 2   移动相机+镜头
7 KLW-M7117-00 STOPPER 1
8 KLW-M71C1-00 BRACKET,RIGHT 1  YSM20R移动相机支架
9 KLW-M71C2-00 BRACKET,LEFT 1
10 KLW-M71C3-00 STAY,EJECTOR 1
11 KLW-M71C4-01 STAY,HOSE 1
12 KLW-M71C5-00 BRACKET,CABLE 1
13 KLW-M71C6-00 COVER,CAMERA R 1  移动相机保护罩
14 KLW-M71C7-00 BRACKET,CABLE 1
15 KLW-M71C8-00 COVER,CAMERA L 1
16 KLW-M71C9-01 PLATE 2,HARNESS 1
17 KLW-M71CB-00 PLATE,HARNESS 1
18 KLW-M71Y0-00 LABEL,HEAD SERIAL 1
19 KLW-M740C-00 HOLDER,TUBE 2
20 KLW-M7601-00 HOLDER,CAMERA 2
21 KLW-M76A0-00 FIDUCIAL LIGHT ASSY. 2 镜头支架
22 KLW-M76L4-00 STAY,FID. LIGHT 2  YSM20R移相机连接器
23 KMC-M7610-00 VISION ATTACHMENT L 1
24 KMC-M7620-00 VISION ATTACHMENT R 1
25 91312-03008 BOLT HEX,SOCKET HEAD 12
26 91312-04006 BOLT HEX,SOCKET HEAD 14
27 91312-04008 BOLT HEX,SOCKET HEAD 10
28 91312-04012 BOLT HEX,SOCKET HEAD 3
29 91312-04025 BOLT HEX,SOCKET HEAD 4 螺丝
30 91312-04040 BOLT HEX,SOCKET HEAD 4  螺丝
31 99480-04010 PIN,PARALLEL  螺丝
