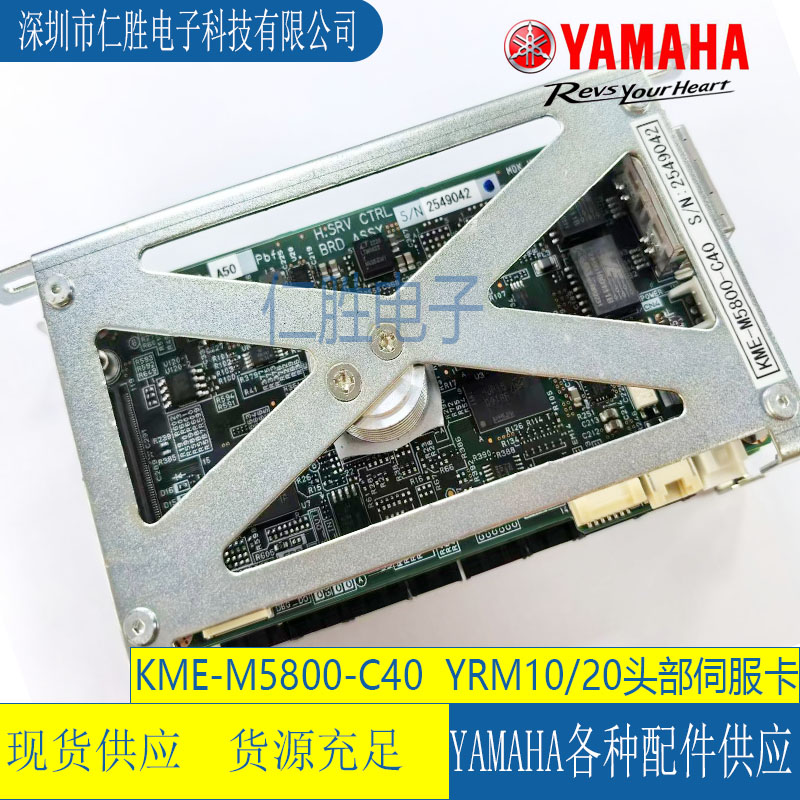

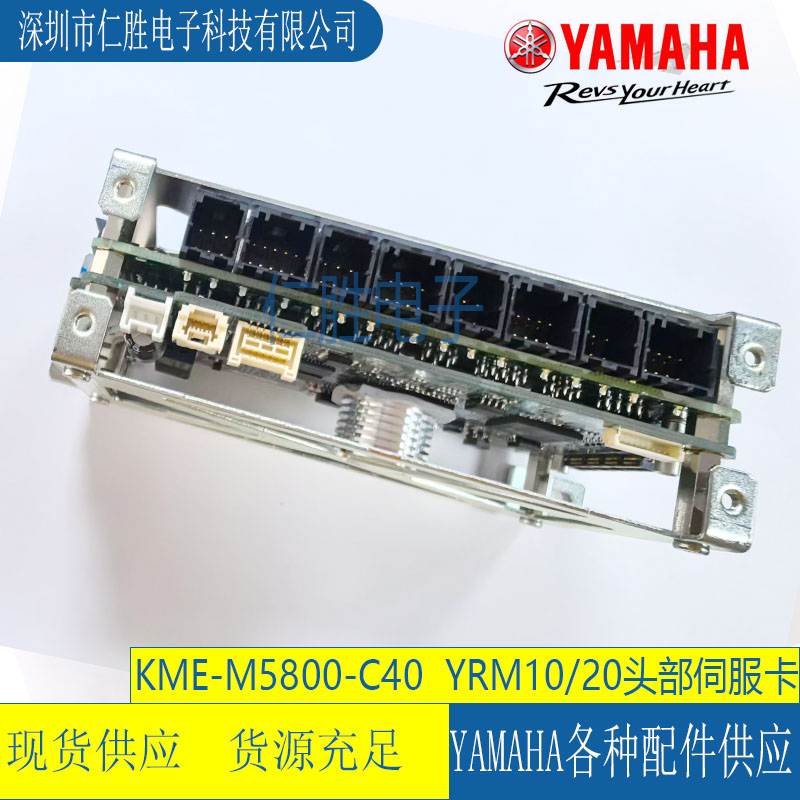

KME-M5800-C40 雅马哈贴片机YRM10头部伺服卡H.SRV CTRL BRD ASSY YRM10/YRM20适用

YRM10
1 KRM-M71B0-00 HM HEAD UNIT ASSY. 1 /
2 KRM-M0202-00 HEAD SERVO BOX ASSY. 1 /
3 KRM-M711H-A0 HEAD HANDLE ASSY. 1 /
23 4 KME-M5800-B2 HEAD SERVO UNIT ASSY 1 B
9 5 KME-M5800-C1 HEAD SERVO UNIT ASSY 1 B
6 KMX-M22A1-02 FRAME,BOX 1 /
7 KMX-M22A3-00 BRKT.,BOARD 2 /
23 8 KMX-M22A4-00 STAY,HNS. 3 /
9 KMX-M22A9-00 CABLE CLAMP 1 /
10 KMX-M22AA-00 CABLE CLAMP 2 /
13 24 11 KRM-M22A2-00 COVER,BOX 1 /
8 12 KRM-M711H-00 STAY,HANDLE 1 /
18 7 13 KRM-M711J-00 HANDLE 1 /
3 16 12 7 14 KRM-M711L-00 COVER,HNS. 1 /
15 KRM-M71YA-00 LABEL,HEAD SERIAL 1 /
5 23 16 $UT10 JOINT 1
14 17 90990-23J013 GROMMET 1
18 18 91312-04006 BOLT HEX,SOCKET HEAD 4
19 91312-04008 BOLT HEX,SOCKET HEAD 6
4 17 20 91312-04022 BOLT HEX,SOCKET HEAD 2
23 21 91312-05010 BOLT HEX,SOCKET HEAD 2 Delete
22 91312-06020 BOLT HEX,SOCKET HEAD 2
23 97602-03306 SCREW PAN HEAD W/WASHER 38
24 91312-05012 BOLT HEX,SOCKET HEAD
