KMG-M78C0-00 YAMAHA YSM10贴片机元件扫描相机 SCAN CAM. ASSY.,CX,提供相机维修服务

1 KMG-M7850-00 SC MOTOR ASSY. 1 M43 : SC-axis

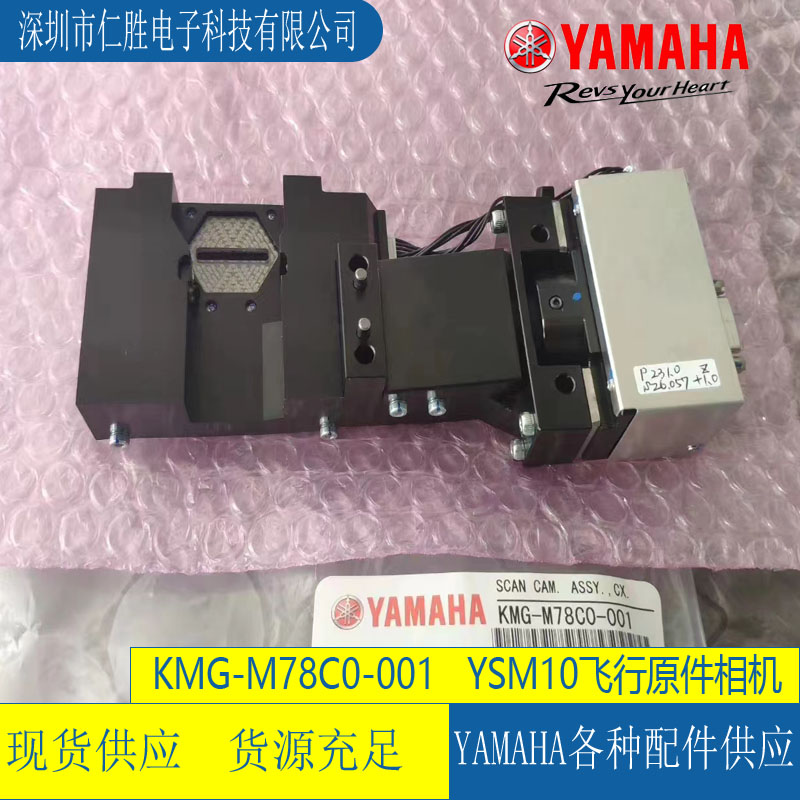

2 KMG-M78C0-00 SCAN CAM. ASSY.,CX. 1
3 KLW-M78H0-00 HNS.SCAN ASSY. 1
4 KHY-M13D8-00 STICKER 1 head number guide sticker
5 90K41-001400 LABEL,CAUTION 2 "Strong magnetic field" pictogram
6 90K41-001330 LABEL,CAUTION 1 "Do not touch." message
7 90K43-200580 LABEL,SERIAL 1 manufacturing serial number
8 KMG-M7A13-00 DIFFUSER, MAIN 1

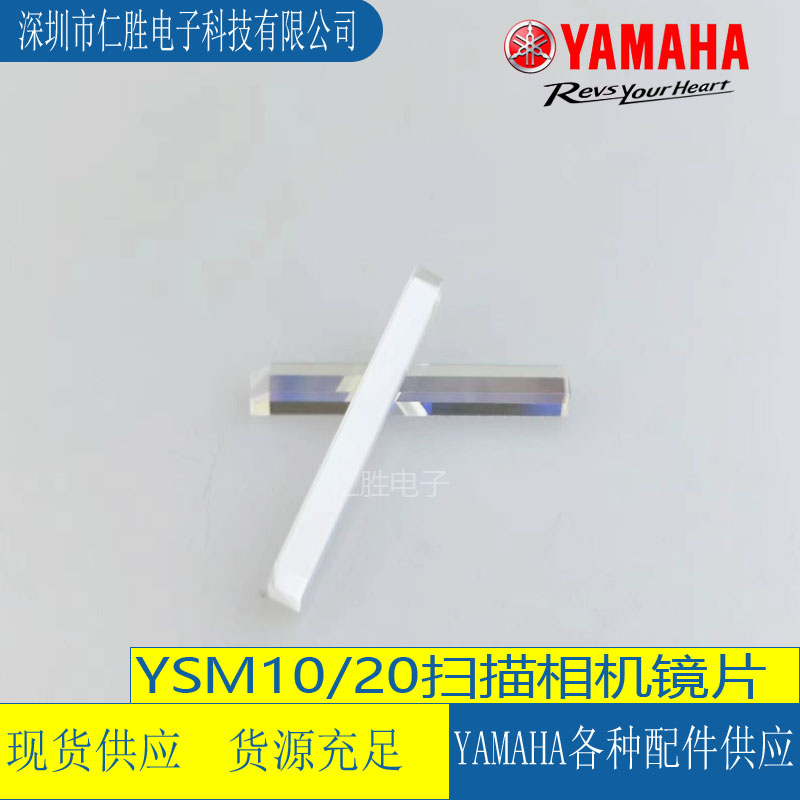

9 KMG-M7A16-00 COVER,PRIZM 1
10 KMG-M7A21-01 COVER,LIGHT 1

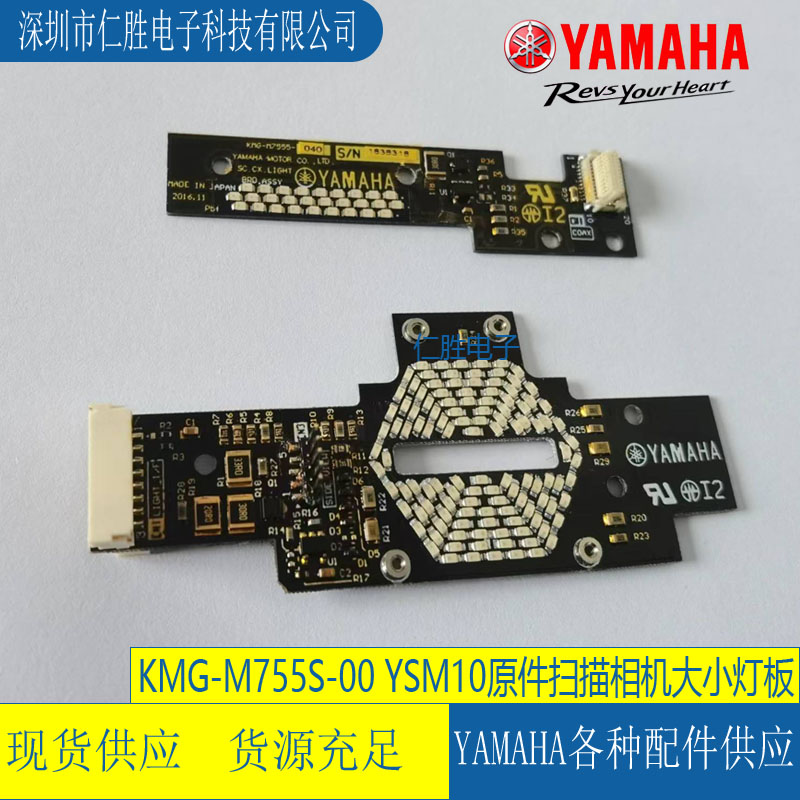

11 KMG-M755S-00 SC.LIGHT BRD. SET 1
12 KMG-M7A30-00 SIDE LIGHT ASSY. 1
13 KMG-M7A31-00 BLOCK,LIGHT SIDE 1
14 KHY-M7A34-01 DIFFUSER, SIDE 1
15 KMG-M7905-00 SC.SV.LIGHT BRD ASSY 1
16 90990-08J020 SCREW, PAN HEAD 3
17 90990-28J002 WASHER,PLAIN 3
18 KMG-M7A41-00 DIFFUSER,COAX. 2
19 KMG-M78C2-00 AR SHEET 1
20 KMG-M78C3-00 AR SHEET 1
21 90K41-001320 LABEL,CAUTION 1 "Do not touch." pictogram
22 KMG-M66N2-00 HNS,SCAN LIGHT 1 J0521 : SCAN
23 90990-08J018 SCREW, PAN HEAD 8
24 90990-08J020 SCREW, PAN HEAD 1
25 90990-08J026 SCREW, PAN HEAD 4
26 90990-55J001 CLAMP, CABLE 1
27 90112-02J008 BOLT,HEX.SOCKET HEAD 2
28 90112-2AJ005 BOLT,HEX.SOCKET HEAD 4
29 98902-03006 SCREW, BINDING HEAD 1
30 KLW-M78H1-00 PLATE,CABLE 1
31 KLW-M78H2-00 BRACKET,CABLE 1
32 KLW-M78H3-00 TAPE,SCAN CABLE 1
33 KLW-M78H5-00 BRACKET,CONNECTOR 1
34 KLW-M78H6-00 PLATE,CLAMP 1
35 KLW-M78H7-00 COVER,SENSOR 1
36 KLW-M78H8-00 CLAMP,CABLE 1
37 KLW-M66JA-00 HNS,SCAN FLEX 1 J0511 : connected to [2]
38 90172-00J030 WASHER,EXTL.TOOTHED 1
39 90172-00J040 WASHER,EXTL.TOOTHED 1
40 90990-01J106 BOLT,HEX.SOCKET HEAD 4
41 90990-01J107 BOLT,HEX.SOCKET HEAD 4
42 90990-11J001 SCREW, PAN HEAD W/W 2
43 90990-11J006 SCREW, PAN HEAD W/W 1
44 91312-03005 BOLT,HEX.SOCKET HEAD 2
45 91312-03008 BOLT,HEX.SOCKET HEAD 6
46 $NK-3N NYLON CLIP 1
47 90K30-534006 HNS,EARTH 1 J0678 : connected to [2]
48 KGS-M5184-00 SEAL,EARTH 1 3 70 pieces per sheet : split piece by piece from sheet
